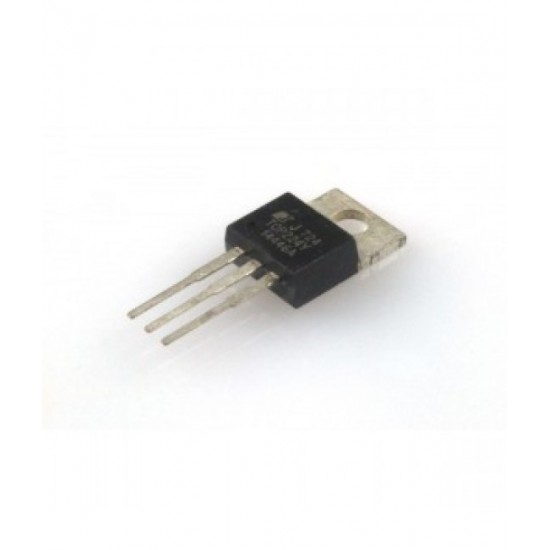

TOP224Y TOPSwitch-II 75W

Free Delivery
$5.00
Ex Tax: $5.00
Brand: Twins Chip
Product Code: PWM Switch
Availability: 100

TOP224Y TOPSwitch-II 75 W

Description:
The second generation TOPSwitch-II family is more cost
effective and provides several enhancements over the first
generation TOPSwitch family. The TOPSwitch-II family extends
the power range from 75W for 100/115/230 VAC
input and from 45W for 85-265 VAC universal input

Specification:

Three terminal Off line PWM Switch
Power range from 75W for 100/115/230 VAC input
Power range from 45W for 85-265 VAC universal input

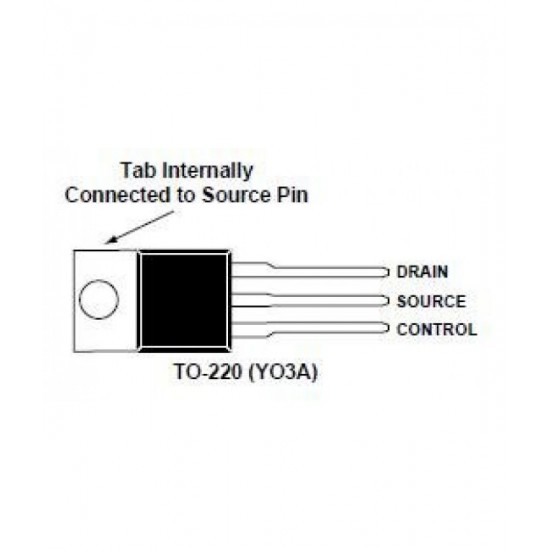

TO-220/3 Package

Product Highlights:

• Lowest cost, lowest component count switcher solution
• Cost competitive with linears above 5W
• Very low AC/DC losses – up to 90% efficiency
• Built-in Auto-restart and Current limiting
• Latching Thermal shutdown for system level protection
• Implements Flyback, Forward, Boost or Buck topology
• Works with primary or opto feedback
• Stable in discontinuous or continuous conduction mode
• Source connected tab for low EMI
• Circuit simplicity and Design Tools reduce time to market

Datasheet
